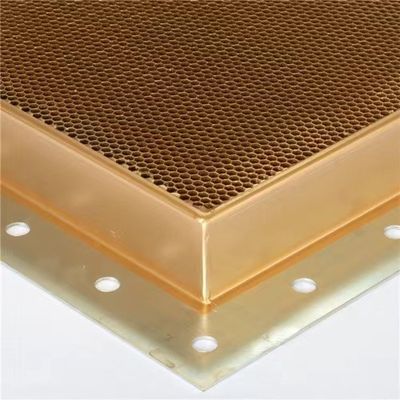

All Pass Transfer Function Honeycomb Waveguide Air Vents Shielding Effectiveness 14KHz 40GHz Meet 100dB Communication Devices

Product Description:

The Honeycomb Waveguide Air Vents are an essential component designed specifically for environments that require stringent electromagnetic interference (EMI) shielding, such as MRI rooms and RF cage ventilation systems. These vents are engineered to provide exceptional EMI shielding effectiveness, boasting an impressive attenuation of up to 60 dB. This high level of shielding ensures that sensitive equipment remains protected from unwanted electromagnetic noise, maintaining the integrity and performance of critical medical and communication devices.

One of the standout features of these honeycomb waveguide vents is their unique design that combines the structural benefits of a honeycomb pattern with advanced microwave absorbing materials. The input impedance of the vents is carefully calibrated to absorb and dissipate microwave energy efficiently, making them ideal for use as waveguide windows in facilities where electromagnetic wave control is paramount. This characteristic allows the vents to act as a barrier that blocks harmful electromagnetic waves while simultaneously permitting airflow, thus maintaining optimal ventilation without compromising EMI shielding performance.

Particularly beneficial in MRI room honeycomb applications, these waveguide air vents help create a controlled electromagnetic environment essential for the accurate operation of MRI machines. MRI rooms require meticulous shielding to prevent external radio frequency (RF) signals from interfering with the imaging process. The honeycomb waveguide vents serve as a critical component in the construction of RF cage ventilation systems, allowing necessary airflow while maintaining a sealed shield against electromagnetic interference. This balance ensures that the MRI environment remains stable and free from signal disruptions.

In terms of installation and ordering convenience, these air vents are sold in multiples of four, allowing for scalable deployment in various facility sizes and configurations. This packaging approach simplifies inventory management and ensures that customers can purchase quantities that align with their project requirements without excess or shortage.

Durability and reliability are paramount in applications involving electromagnetic shielding, and the Honeycomb Waveguide Air Vents come with a comprehensive 3-year warranty. This warranty underscores the manufacturer’s confidence in the product’s performance and longevity, providing customers with peace of mind that their investment is protected. Whether used in new installations or as replacement components, these vents deliver consistent shielding effectiveness over time, even under demanding operational conditions.

To summarize, the Honeycomb Waveguide Air Vents are an advanced solution for electromagnetic wave shielding combined with efficient ventilation. Their EMI shielding effectiveness of up to 60 dB, microwave absorbing input impedance, and practical design make them ideal for use as waveguide windows in MRI room honeycomb assemblies and RF cage ventilation setups.

Features:

• Product Name: Honeycomb Waveguide Air Vents
• Type: MRI Room Shielding
• Application: Electronics Enclosures, Communication Devices
• Sample: Available
• Designed specifically as an mri room honeycomb solution
• High-performance Honeycomb vent for superior airflow and shielding
• Ideal for use in mri room honeycomb applications to ensure optimal EMI protection

Technical Parameters:

Applications:

These air vents utilize a high-quality honeycomb core structure that acts as a waveguide, allowing air to pass freely while effectively blocking unwanted electromagnetic waves. This unique design makes the honeycomb vent an essential component in ventilation windows within MRI rooms, ensuring that proper airflow is maintained to support equipment cooling and operator comfort, while simultaneously preserving the sensitive magnetic environment.

Suitable for various installation scenarios, the Jovi 1-CF-4 model is available with flexible frame options including L Type, Z Type, or without any frame, allowing it to be seamlessly integrated into different architectural and mechanical setups. The vents support transfer functions such as All Pass and Low Pass, catering to specific ventilation and shielding requirements. Whether it is a newly constructed MRI suite or an upgrade to an existing facility, these honeycomb waveguide air vents provide a reliable solution.

Ideal application occasions include MRI rooms in hospitals, diagnostic imaging centers, and research laboratories where maintaining a controlled environment free from electromagnetic interference is critical. The vents can also be used in other high-frequency shielding rooms or cleanrooms requiring regulated airflow. Their robust construction and packaging in wooden cases or customized solutions ensure safe delivery within 5-8 work days, with a supply capacity of up to 2000 pieces per month.

 This combination of quality, reliability, and convenience makes the Jovi Honeycomb Waveguide Air Vents the preferred choice for professionals seeking efficient ventilation windows that do not compromise on shielding performance.

Packing and Shipping:

Our Honeycomb Waveguide Air Vents are carefully packaged to ensure maximum protection during transit. Each vent is individually wrapped in protective foam to prevent scratches and damage, then placed in a sturdy, corrugated cardboard box. The packaging is designed to keep the vents secure and stable, minimizing movement and impact while shipping.

For shipping, we use reliable carriers with tracking and insurance options to guarantee safe and timely delivery. The Honeycomb Waveguide Air Vents can be shipped domestically and internationally, with packaging tailored to meet specific shipping requirements. Customers will receive a tracking number once their order has been dispatched, allowing them to monitor the shipment until it arrives at their destination.

We recommend inspecting the package upon arrival and reporting any damage immediately to ensure prompt resolution. Our packaging and shipping process is optimized to deliver your Honeycomb Waveguide Air Vents in perfect condition, ready for installation and use.

FAQ:

Q1: What is the brand and model number of the Honeycomb Waveguide Air Vents?

A1: The Honeycomb Waveguide Air Vents are branded as Jovi, and the model number is 1-CF-4.

Q2: Where are these Honeycomb Waveguide Air Vents manufactured?

A2: These air vents are manufactured in China.

Q3: What certifications do the Honeycomb Waveguide Air Vents have?

A3: The product is CE certified, ensuring it meets European safety and quality standards.

Q4: What is the minimum order quantity and price range for these air vents?

A4: The minimum order quantity is 1 piece, and the price ranges from $130 to $380 per piece depending on specifications.

Q5: What are the packaging options and delivery time for the Honeycomb Waveguide Air Vents?

A5: The air vents are packaged in wooden cases or customized packaging as per customer requirements. Delivery time is typically 5-8 work days.
